XVR501H-04-I3 || Diamond, DVR, 5MP Lite, 4CH, 1X SATA PORT
– Max Recording Resolution: 5MP Lite
– Channels: 4CH
– LAN Ports: 1
– SATA: 1X SATA PORT
– Video Outputs: HDMI / VGA
– NDAA Compliant: No
– Hardware Features: Audio in, Audio out
Face Detection /Recognition
Human and Vehicle Classification
Intrusion
Perimeter Protection
PoS
AI Features
Adopting AI chip and advanced deep-learning algorithm, AI enables precise recognition of human and vehicle for accurate alarm and quick target search, making it easy for users to focus on real threats, enhancing video analysis efficiency, and thus significantly reducing labor costs.
Perimeter Protection

SMD Plus



Face Recognition

AI Coding
SMD Plus
SMD plus, referred to as Smart Motion Detection Plus, can recognize human and vehicle shapes based on motion detection through the adoption of a deep learning algorithm in order to reduce false alarms. With SMD Plus, the XVR recorder only sets off an alarm for human and vehicle detection, filtering out all other movements. This helps users to focus on saving time and labor costs associated with checking false alarms.


Human and vehicle options for quick search!
Perimeter Protection
Perimeter Protection provides an intelligent analysis based on tripwire and intrusion detection. Sending alarms only when intrusions are triggered by a human or vehicle, once again reducing false alarms.
Traditional IVS

Perimeter Protection



Human & vehicle options for quick search

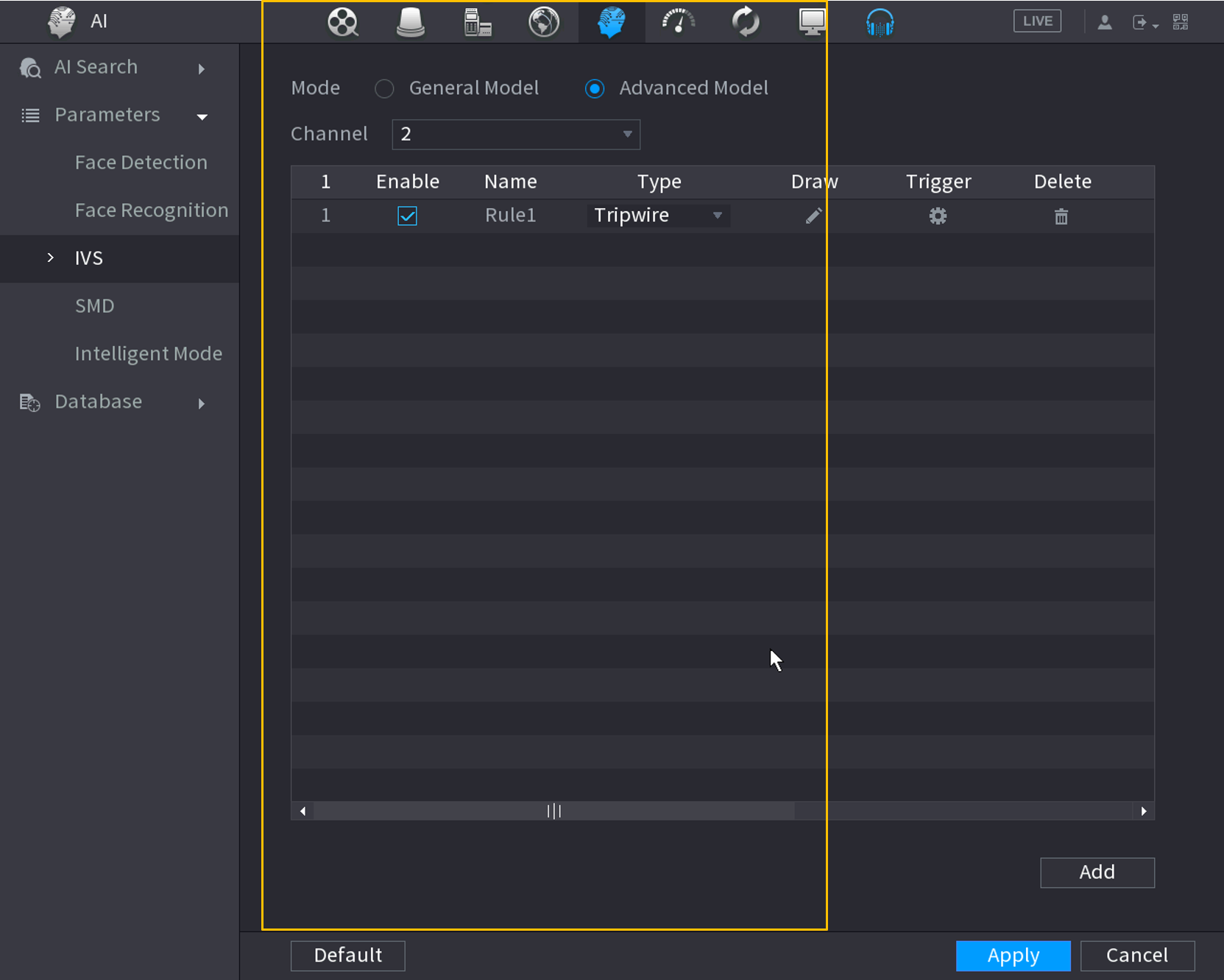

Perimeter Protection – IVS Mode Option
To better meet the requirements of both accuracy and additional IVS channel options, there are various models which can be chosen to address real needs. The Advanced Model for example has a higher accuracy rate, while the General Model supports up to 4 channels with lower accuracy.

IVS channels | Advanced Model | General Model |
---|---|---|
5×04/5×08-I3 | 1-CH | 2-CH |
5×16/32-I3 | 2-CH | 4-CH |
5×04-4KL-I3 | 1-CH | 4-CH |
5×08/16-4KL-I3 | 2-CH | 4-CH |
Face Recognition
Feature attribute data can be extracted from all targeted faces. ENS Face Recognition makes it possible to do image search, as well as face attribute search by comparison. By comparing the modelled object and the database, the user can identify facial characteristics, significantly enhancing accuracy and efficiency.
Accurate Face Comparison

Up to 95% face recognition accuracy
Quick Target Search

Face Attribute Search

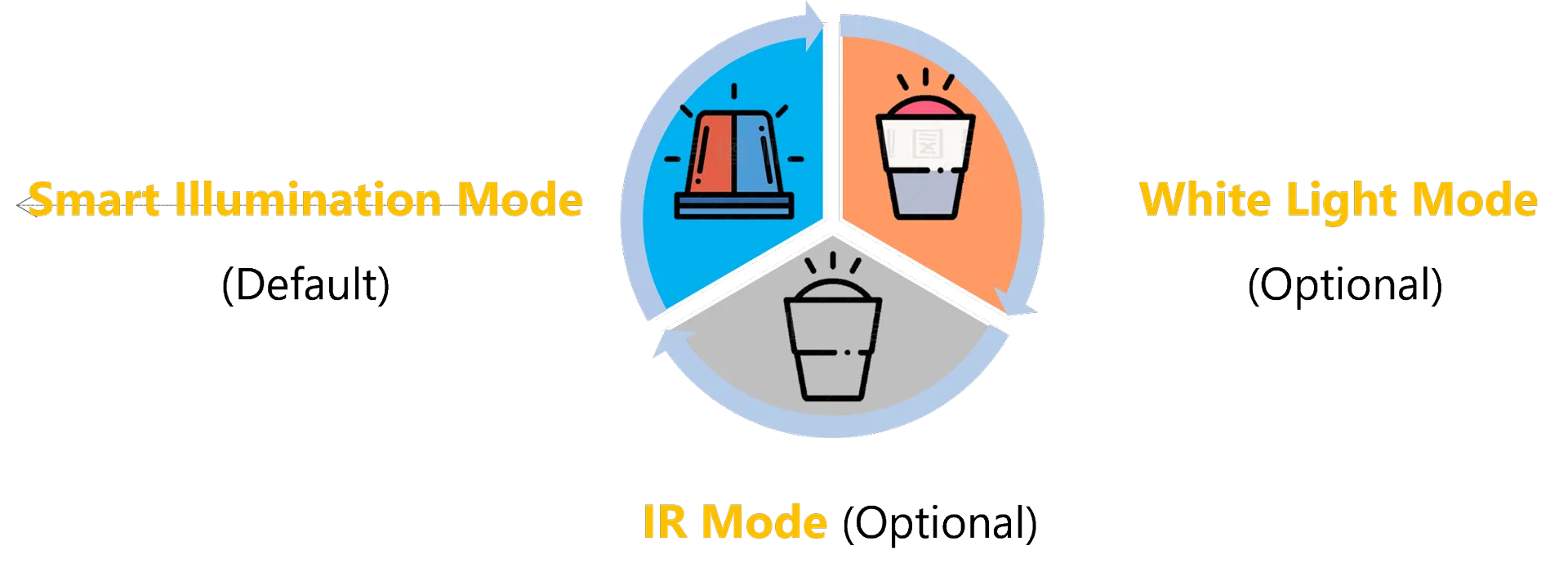

Smart Illumination Compatible

HDCVI Smart Dual Illuminators refer to a complete system. The AI XVR can accurately detect real targets, and the camera can easily switch between IR mode and white light mode to effectively reduce light pollution.

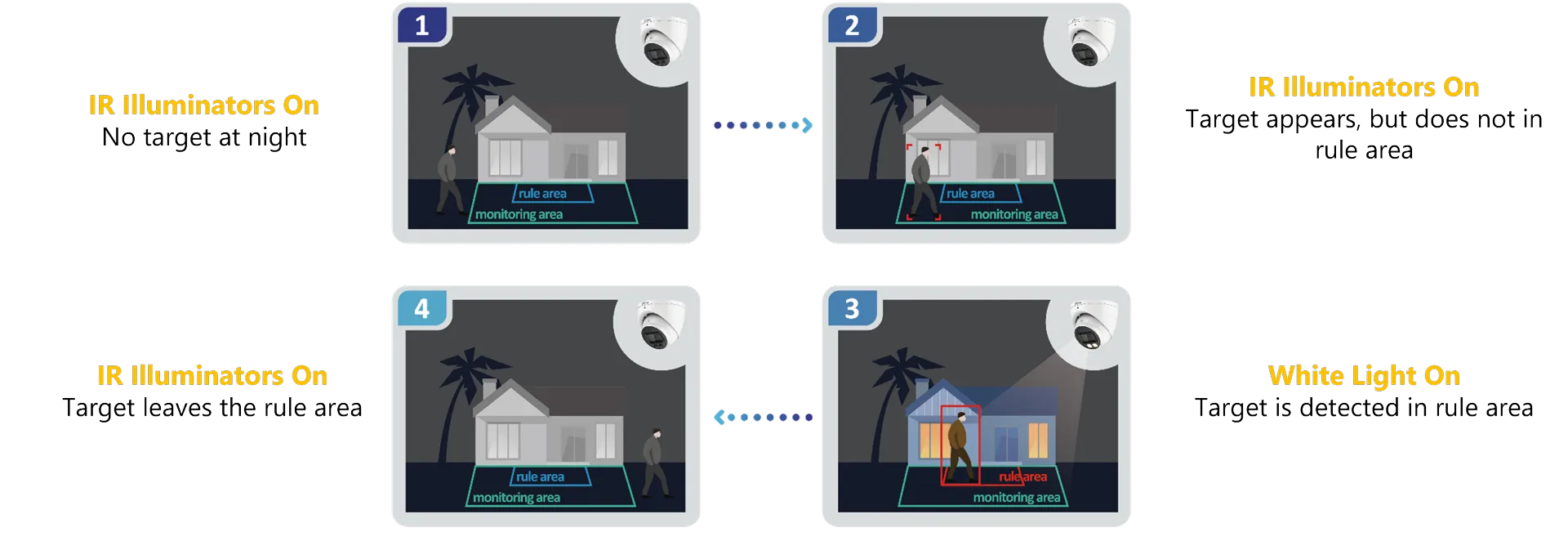

Smart Illumination Compatible – System Diagram

DMSS Compatible


Scheduled AI – One Click Arming & Disarming

Aside from one-click disarming setting on DMSS, the real-time enable or disable of warning light and siren can also be achieved on DMSS.

Control Siren

Control Warning Light
Scheduled AI – Arming/Disarming Controlled by Local Alarm
Besides controlling the alarm via the XVR recorder or the APP, the disarming/arming can be controlled by the local alarm of the device. For example, users can easily select the alarm feature, quickly arming or disarming, making device use more convenient for all end-users.


Real 5MP Camera Input
HDCVI leads the industry by introducing 5MP 16:9 resolution into our product portfolio, achieving undistorted 5MP image performance and super vivid image details.
Previous 5MP 4:3
- 4:3 output, image distortion
- Image quality & detail loss


Real 5MP 16:9
- 16:9 output, original image
- Superior clarity & details
Real 5MP Camera Input – Real-time
With new technological advancements, our current 5MP security cameras provide a more fluent visual experience and better restoration of the monitoring scene.

ENS 5MP@25fps

Competitor 5MP@20fps


4K Resolution (4K supporting options only):
- Sharp 4K Video Imaging Technology
- Record at advanced level of detail for superior forensic data
- Enhanced situational awareness with clear video, staying alert of all potential dangers
Perimeter Protection:
- Enhanced Perimeter Protection using active deterrence technology
- Theft Prevention
- Efficient Forensic Data
- Advanced VCA with instant notification


Tripwire/Intrusion Detection:
- Home Entrance and Exit Protection
- Asset Theft and Vandalism Prevention
- Clear Vivid Images and intruder deterrence
- Home or Business Perimeter Protection
Limited Perimeter Protection:
- Home Entrance and Exit Protection
- Deter asset theft and vandalism with active deterrence
- Clear vivid images and intruder deterrence
- Home or business Perimeter Protection



Human and Vehicle Classification:
- Focus on Human and Vehicle Classification
- Actively detect in real-time loitering and vandalism in various scenarios such as parks, cemeteries, school facilities, and gated communities.
- Accurately detect human or vehicle, effectively reducing false alarms.
SMD Plus:
- Reduce false alarm notifications with a 98% human and vehicle detection accuracy rate
- Provides real-time alarm prompt and real-time protection
- Effective monitoring with advanced detection technology provides safety and security for all

SOLUTION APPLICATIONS
EFFECTIVE
PERIMETER PROTECTION
LOSS PREVENTION
AND BUSINESS INTELLIGENCE
THEFT AND VANDALISM
PREVENTION
ASSET
PROTECTION
PROVIDING EFFICIENT FORENSIC DATA
TENANT AND PROPERTY
PROTECTION
4Channel Penta-brid 1U Digital Video Recorder Features
- H.265 /H.265 dual-stream video compression
- Full-channel AI-Coding is supported.
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- IP camera inputs with a maximum of 6 channels, each with a resolution of 6MP;
- Incoming bandwidth 32 Mbps.
- A video broadcast of up to one channel is possible ( analog channel ) Perimeter Security
- A video stream with up to four channels is available ( analog channel ) SMD Plus (Surface Mount Devices)
- A video broadcast of up to one channel is possible (analog channel ) identification of human faces
- IoT & POS functionalities
This 4Channel Penta-brid 1U Digital Video Recorder(DVR) in Diamond Series high recommend works with:
Diamond HD Analog and Coaxial Cameras
Weight | 3.86 lbs |
---|---|
Dimensions | 6 × 6 × 6 in |
