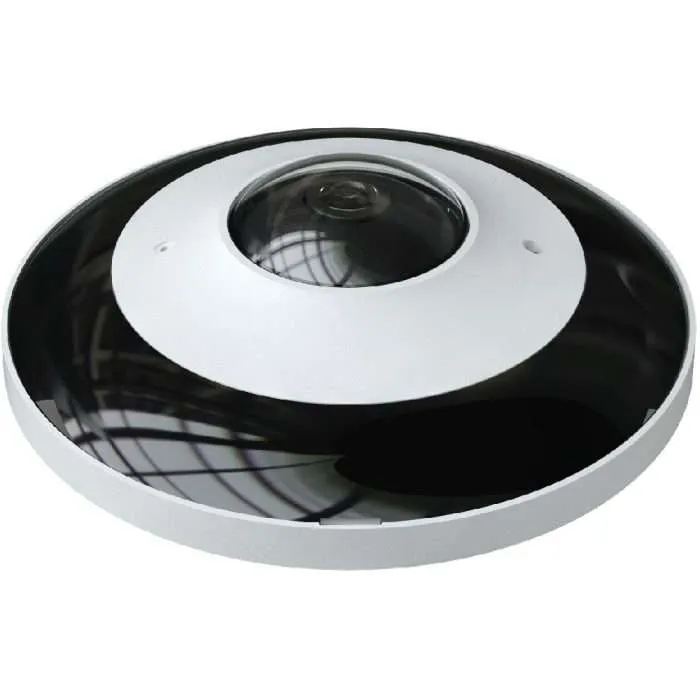

6MP Fixed Fisheye IP Camera Titanium IP-5FS6006N

6MP IR Water-Proof Fisheye Network Camera, Fixed, 1/2.9″, 6MP @30FPS, 1.07mm, IR(66-98ft), DWDR, Built-in Mic, CVBS

Published On: 05/10/2022Categories: , , SKU: IP-5FS6006N

6MP Fixed Fisheye IP Camera Titanium IP-5FS6006N Features:

  • 6MP H.265 full real-time coding
  • Effective pixels: 2160 × 2160;
  • ICR auto switch, true day/night
  • 20 ~ 30m IR night view distance
  • 3D DNR, digital WDR, HLC, BLC, and ROI coding
  • One CVBS output
  • 1CH audio input, 1CH audio output, 1CH built-in MIC
  • Built-in micro SD card slot, up to 256GB
  • 1CH alarm input; 1CH alarm output
  • DC12V/PoE power supply
  • IP67 ingress protection
  • Support three streams

Functions:

  • Remote Monitoring: IE browser/TVT NVR/Mobile APP/NVMS
  • Online Connection: Support simultaneous monitoring for up to 11 users; Support multi-stream real-time transmission
  • Network Protocol: UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, HTTP, HTTPS, 802.1x, QoS
  • Interface Protocol: ONVIF, GB-T/28181-2016
  • Storage: Network remote storage; micro SD card storage
  • Smart Alarm: Motion detection; SD card error, SD card full, IO alarm, cable disconnection, IP address conflict
  • General function: Watermark, IP address filtering, video mask, heartbeat, illegal login lock

General:

  • Power Supply: DC12V/PoE
  • Power Consumption: < 10.5W
  • Storage Environment: – 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing)
  • Operating Environment: – 30 °C ~ 50 °C (-22°F~122°F); Humidity: less than 95 % (non-condensing)
  • Dimensions (mm): Φ 130 × 41
  • Weight (net): Approx. 0.45KG
  • Installation: Ceiling mounting(wall mounting available with the junction box and bracket)

This 6MP Fixed Fisheye IP Camera Titanium IP-5FS6006N is highly recommended to work with:

Network Recorders – Titanium NVRs
