HNC3I189T1-IRASPV/28-S4 || Diamond, IPC, 4K / 8MP, Bullet, 2.8mm Fixed
– Housing: Bullet
– Resolution: 4K / 8MP
– Lens: 2.8mm Fixed
– Night Vision: Full Time Color, Infrared / IR, LED, Starlight
– WDR: True WDR
– Water Resistance Rating : IP67
– NDAA Compliant: No
– VCA Features: Active Deterrence, Basic VCA, Human / Vehicle Classification
– Hardware Features: 2 Way Audio, Alarm In, Alarm Out, Audio In, Audio Out, Built-in Mic, Built-in Speaker, POE, SD Card
Register for pricing
4K
Sound & Light Alarm
Smart Dual Illumination
Perimeter Protection
Intrusion
Current Active Deterrence Pain Points
Single Illumination Mode
At present, most products in the market only have IR light, and do not generate full-color image at night. Using white light at night can increase light pollution.
Limited Pickup Performance
Too much background noise causes interference; short pickup distance and limited mic function.
Poor Image Quality Under Low Illumination
Limited by hardware specifications, resulting to poor image quality at night.
Complicated Integration with Alarm System
It’s complicated to integrate with current alarm systems, which can affect user experience.
Detection Area for White Light
If the user sets the detection area for the white light, the white light won't turn on when there's is a target outside of the detection area, even if the target enters the monitoring area.
The white light turns on when the target enters the detection area. The alarm will focus on the designated area of interest, and is very effective for various solutions applications such as roadside, walk-way, or backyard.
Active Deterrence 2.0
Smart Dual Illuminators
Easily switch between Full-Color and IR mode
01
VoiceCatcher Technology
Greater pick-up distance range; less noise
02
Better Image
Brighter & clearer IR Image; 4K real-time image
03
Eco-System
Easily integrates with alarm systems
04
AI Features
SMD 3.0 Perimeter Protection
05
Smart Dual Illuminators: The Most Comprehensive Illumination Method
Smart Dual Illuminators
Easily switch between full-color and IR mode
I
Smart Illumination Mode(default): Switch between IR Mode and white light when target is detected.
II
IR Mode: Only IR illuminator is ON. It is suitable for scenes where supplementary white light is not required, thus reducing light pollution.
III
Warm Light Mode: Only the white light is ON. It is suitable for scenes that require color video footages.
Smart Illumination Mode: Switch Illuminators through AI:
Smart Illumination Mode Adopts a Deep Learning Algorithm to Detect Targets.
1
IR illuminator is on at night.
2
White light turns on when a target appears to record full-color images.
3
Siren and light turns on (Active Deterrence) to warn the target.
4
When the target disappears, white light turns off (PTZ back to preset), and IR illuminator turns back on.
Better Image: New Low-Light Image Experience
IR cameras on the market mostly have F1.6 aperture. ENS adopts F1.0 super large aperture which greatly improves the image quality.
IR Image with F1.6 Aperture
IR Image with F1.0 Aperture
Compared to the F1.6 Aperture, F1.0 Aperture presents a more detailed image: 1.The whole image is sharper and brighter. 2.Edge details are clearer.
Better Image: Brighter and Smoother 4K Images
ØF1.0 large aperture collects 1.96 times the amount of light compared with the F1.4 aperture of the previous generation, producing more light and brighter images. It provides Ø25/30 fps real-time video even when AI is enabled (the previous generation only offers 20fps).
Real-time
Non Real-Time
Max. 4K (3840 × 2160) @25/30 fps output even when AI is enabled.

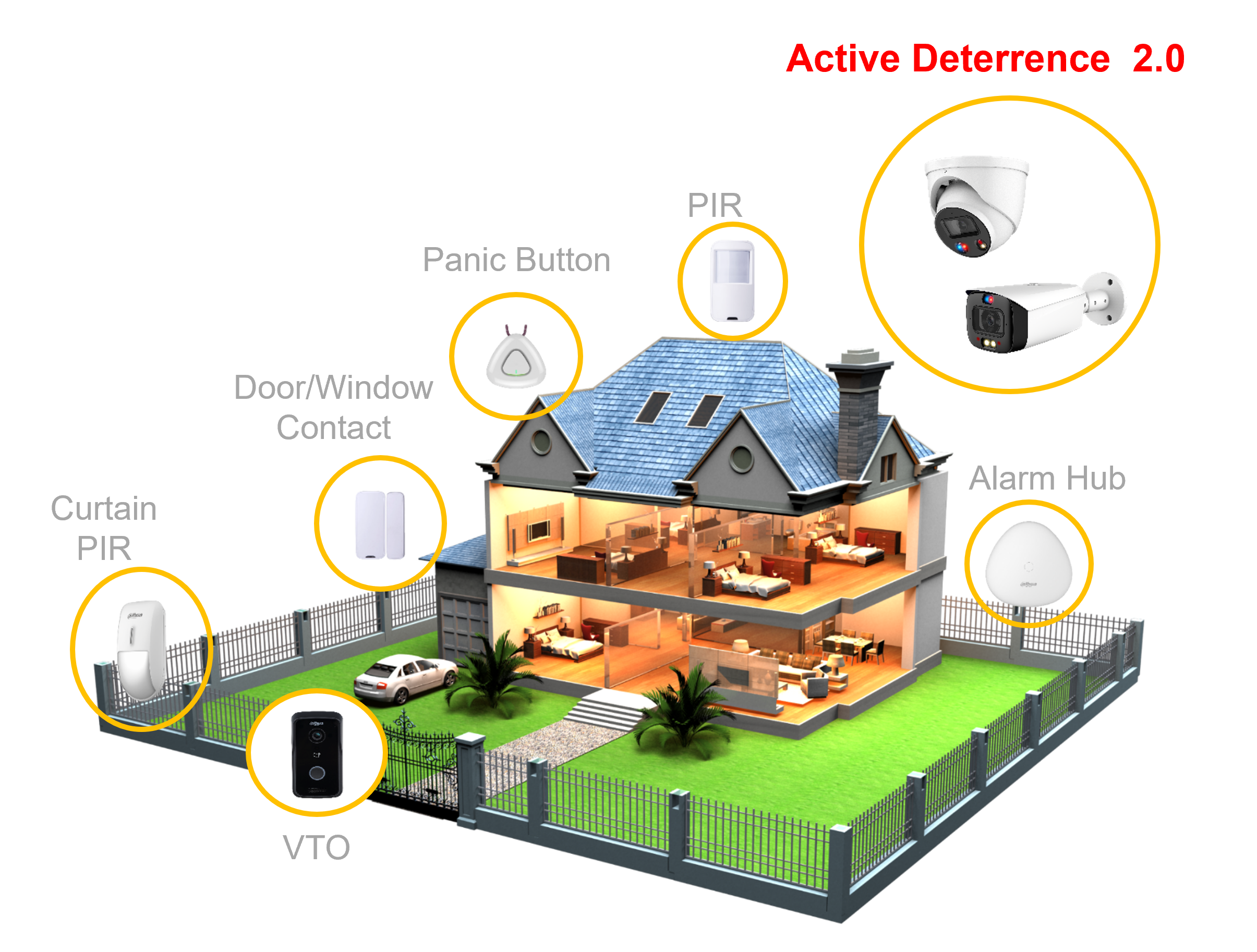

Ecosystem: Arming/Disarming Through Alarm-in Port
The Active Deterrence 2.0 camera can be connected to traditional alarm systems. It offers one-tap arming/disarming through the alarm-in port. It allows usage of existing systems for alarm linkage and control, providing a better user experience.
Option 1: Arming/Disarming through an alarm button, which is connected with the camera’s alarm-in port.
Option 2: Arming/Disarming via the DMSS
AI Features: SMD 3.0
With the continuous in-depth application of SMD in the industry and constant optimization based on actual scenarios, we proudly launched SMD 3.0. Compared with SMD Plus, this new version offers more optimized features:
Reduced False Alarms
Through the upgrading of its AI capacities, false alarms caused by animals, leaves, lights, etc. are significantly reduced.

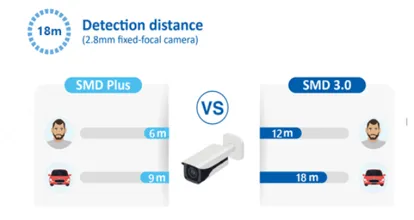

Longer Detection Distance
By constantly improving its AI capacities, the detection range of the same device has increased by as much as 50%.
Higher Detection Accuracy
Through the upgrading of its AI, the maximum detection accuracy for human and vehicle targets can reach up to 99%.
AI Features: Perimeter Protection
Powered by deep learning algorithm, ENS' Perimeter Protection technology can accurately recognize human and vehicle targets. In restricted areas (e.g. pedestrian area and vehicle area), false alarms in intelligent detection based on target type (e.g. tripwire, intrusion) are greatly reduced.

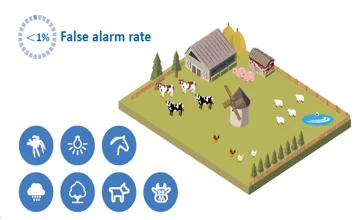

Accurate Detection False alarm rate: < 1%
Target Classification Focuses on human and vehicle

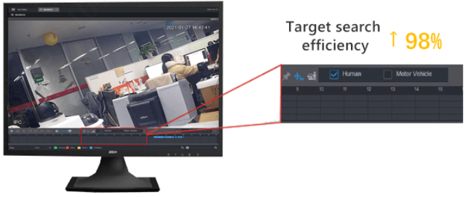

Quick Target Search Target search efficiency: ↑ 98%
Remote Monitoring Alarm push notification sending time: ＜1s
4K Resolution:
- Sharp 4K Video Imaging Technology
- Record at advanced level of detail for superior forensic data
- Enhanced situational awareness with clear video, staying alert of all potential dangers
Sound and Light Alarm:
- Effectively deter home or business break-ins
- Red and Blue flashing light, scaring off intruders
- Trigger both sound and light for advanced perimeter protection and immediate crime prevention
Perimeter Protection:
- Enhanced Perimeter Protection using active deterrence technology
- Theft Prevention
- Efficient Forensic Data
- Advanced VCA with instant notification
Tripwire/Intrusion Detection:
- Home Entrance and Exit Protection
- Asset Theft and Vandalism Prevention
- Clear Vivid Images and intruder deterrence
- Home or Business Perimeter Protection
Limited Perimeter Protection:
- Home Entrance and Exit Protection
- Deter asset theft and vandalism with active deterrence
- Clear vivid images and intruder deterrence
- Home or business Perimeter Protection
Human and Vehicle Classification:
- Focus on Human and Vehicle Classification
- Actively detect in real-time loitering and vandalism in various scenarios such as parks, cemeteries, school facilities, and gated communities.
- Accurately detect human or vehicle, effectively reducing false alarms.
Built-In Microphone and Speaker:
- Enhanced 2-way communication, allowing you to listen and speak to visitors or intruders
- Deter criminalities by warning intruders in real-time
SMD Plus:
- Reduce false alarm notifications with a 98% human and vehicle detection accuracy rate
- Provides real-time alarm prompt and real-time protection
- Effective monitoring with advanced detection technology provides safety and security for all
Intelligent Detection:
- Perimeter Protection and SMD Plus Technology
- Intrusion, Tripwire, and Line Crossing Technology
- Human and Vehicle Classification Technology
APPLICATION SCENARIOS
As the challenges have evolved, so to have the solutions. ENS Diamond Series security cameras provide advanced SMD Plus with Active Deterrence technology to help combat and solve your challenges! These Include:
Entrance and Exit Monitoring / Home Security
Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our full-color security cameras provide clear visibility and excellent video quality both day and night for effective home security.
Using advanced full color technology, coupled with white light LED and other enhanced features, our Full-Color Security Cameras bring light to the dark, deterring theft, vandalism and other criminalities.
SMB Loss Prevention and Asset Protection
24/7 monitoring with advanced VCA functions provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.
Enhanced full color features provide vivid images and an effective monitoring solution, improving detail for appropriate forensic analysis regarding incidents such as “dumpster diving”
Commercial Property and Tenant Protection
Utilize advanced SMD Plus, reducing false alarms and providing real-time alarms, allowing for efficient protection of tenants and property.
Provide basic safety and security with Diamond Series security cameras, or advanced protection with human and vehicle classification in order to detect real threats in real-time, preventing vandalism, theft, and other criminalities.
SOLUTION APPLICATIONS
EFFECTIVE PERIMETER PROTECTION
LOSS PREVENTION AND BUSINESS INTELLIGENCE
THEFT AND VANDALISM PREVENTION
ASSET PROTECTION
FULL COLOR PROVIDING EFFICIENT FORENSIC DATA
TENANT AND PROPERTY PROTECTION
8MP Active Deterrence Fixed Bullet IP Camera HNC3I189T1-IRASPV/28-S4 Features:
- 8MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking, are applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm/Audio: 1 in / 1 out
- Supports max. 256 G Micro SD card;
- Built-in dual MICs; 1-ch speaker.
- 12 VDC/PoE power supply.
- IP67 protection.
- Sound and light alarm (red and blue lights).
- SMD 3.0.
- One-click arming/disarming through alarm input.
This 8MP Active Deterrence Fixed Bullet IP Camera HNC3I189T1-IRASPV/28-S4 is highly recommended to work with:
Network Recorders – Diamond NVRs
| Weight | 2.76 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
