HNC5I789-M1N1-36-E2 || Diamond, IPC, 4K / 8MP, Panoramic, 3.6mm Fixed

– Housing: Panoramic
– Resolution: 4K / 8MP
– Lens Category: 3.6mm Fixed
– Night Vision: Full Time Color, LED, Starlight
– WDR: True WDR
– Water Resistance Rating : IP67
– NDAA Compliant: No
– VCA Features: Basic VCA, Human / Vehicle Classification, People Counting
– Hardware Features: 2 Way Audio, Alarm In, Alarm Out, Audio In, Audio Out, Built-in Mic, Built-in Speaker, POE, SD Card

SKU: HNC5I789-M1N1-36-E2




People Counting


Built-In Mic & Speaker

Product Overview

  • 4096 x 1800 @20fps (WDR On)
  • 3.6mm x 2 fixed-focal lens, FOV 180˚
  • 140 dB WDR
  • Built-in Mic and Speaker
  • Perimeter Detection;
    People Counting;
    SMD 4.0;
    Smart Object Detection



Dual-lens 180° Splicing Technology

Advanced Image Fusion Technology

Calculate the feature values of the left and right image, avoid pixel missing and deformation.

Left Lens

Right Lens

Diamond series advanced pixel-level metadata fusion, verifies the feature data of the two images to produce the final fusion image.

180° Wide Angle

Super viewing angel, one camera covers all areas.

Full-Color Technology

Provides large scenes with excellent night visual effects due to dual F1.0 aperture lenses and 1/18″ CMOS sensor.

Compared to a F1.6 aperture lens, these F1.0 lenses can take in 3x the amount of light, providing brighter and clearer images.

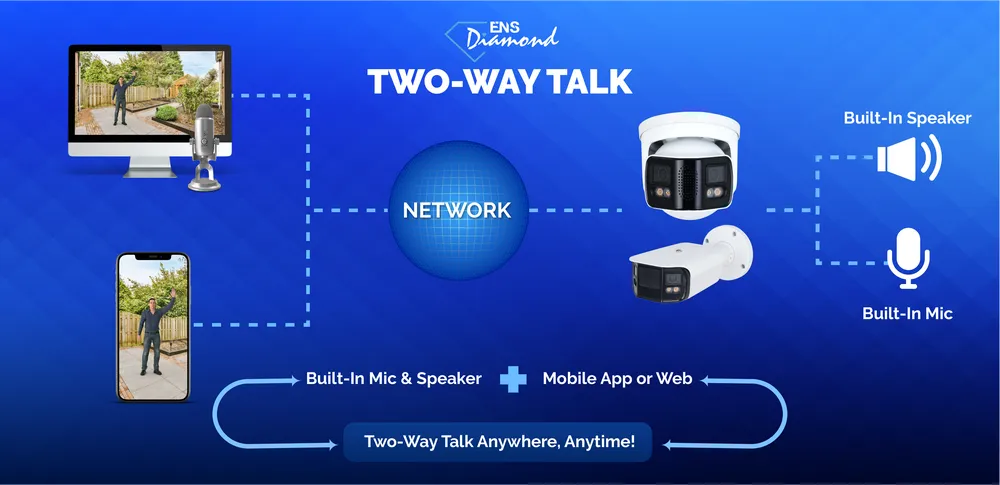

Two-way Talk Technology

Perimeter Protection Applications

  • Real-time alarm with real-time push notifications
  • High accuracy rate
  • 6 types of rules
  • Search video quickly with target classification support
  • Focuses on human and vehicles

People Counting Technology

People counting can track and process moving human body targets to realize accurate statistics. It can provide customers with valuable data for business intelligence reports and analysis.

  • High Accuracy Rate
  • Simultaneous Detection of Targets
  • Storage Period of Passenger Flow Data for up to 1 Year

Product Feature

Full-Color Technology

  • Enhanced perimeter protection with 180° vivid images both day and night
  • Vivid color at night images, providing efficient forensic data.
  • Advanced protection in low-light environments, deterring trespass, vandalism, and other criminalities.

4K Resolution

  • Sharp 4K 180° Video Imaging Technology
  • Record at advanced level of detail for superior forensic data
  • Enhanced situational awareness with clear video, staying alert of all potential dangers.

Human and Vehicle Detection

  • Focus on human and vehicle classification.
  • Actively detect in real time loitering and vandalism in various scenarios such as parks, cemeteries, school facilities, and gated communities
  • Accurately detect human or vehicle, effectively reducing false alarms

SMD 4.0

  • Reduce false alarm notifications with a 96% human and vehicle detection accuracy rate.
  • Provides real-time alarm prompts and real-time protection.
  • Effective monitoring with advanced detection technology provides safety and security for all.

Built-in Mic and Speaker

  • Enhanced 2-way communication, allowing you to listen in on and warn off visitors or intruders.
  • Capture crystal clear important forensic audio


As the challenges have evolved, so to have the solutions. ENS Diamond Series 4K 180° full color panoramic security cameras provide broad area surveillance to help combat and solve your challenges! These Include:

Entrance and Exit Monitoring / Home Security

Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our Diamond Series 4K 180° full color panoramic security cameras with Smart Motion Detection technology, provide clear visibility and excellent perimeter protection both day and night for effective home security.

Using advanced Video Content Analytics, coupled with 4K, 180° full color and SMD Plus technology, our Diamond Series Security Cameras push our perimeter protection solutions to the next level, deterring theft, vandalism, and other criminalities.

SMB Loss Prevention and Asset Protection

24/7 monitoring with advanced VCA functions provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.

Cutting edge 4K 180° full color panoramic technology, coupled with Smart Motion Detection 4.0 provides vivid images and an effective monitoring solution, improving video detail, reducing false alarms, and providing immediate alarm notification for prompt real-time responses.

Commercial Property and Tenant Protection

Utilize advanced SMD 4.0 and 180° full color technology, providing 24/7 monitoring, day and night, allowing for efficient protection of tenants and property.

Provide advanced safety and security with Diamond Series 4K, 180° full color security cameras, in order to detect real threats in real-time, preventing vandalism, theft, and other criminalities.






SMD Plus providing real-time monitoring and alerts


  • Outputs 180° wide angle splicing image.
  • Outputs max. 8 MP (4096 × 1800)@25 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light, and the max. illumination distance is 40 m.
  • ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67 protection.
  • Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.
  • EPTZ: Enlarge and track the targets of intelligent alarms.
  • SMD 4.0.
Weight4 lbs
Dimensions6 × 6 × 6 in
