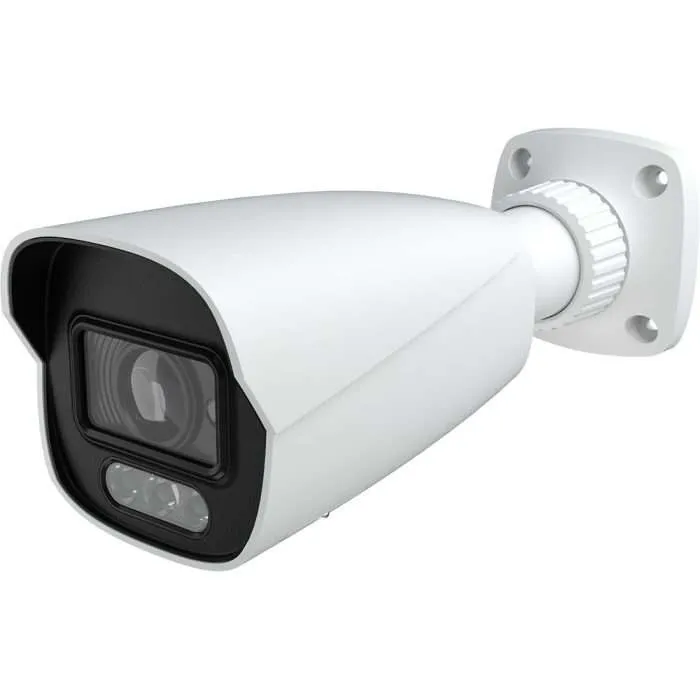

IP-5IR4C22-28-PA || Titanium, IPC, 4MP, Bullet, 2.8mm Fixed

– Housing: Bullet
– Resolution: 4MP
– Lens Category: 2.8mm Fixed
– Night Vision: Full Time Color, Infrared / IR, LED
– WDR: True WDR
– Water Resistance Rating : IP66
– NDAA Compliant: Yes
– VCA Features: Active Deterrence, Basic VCA, Face Detection, Human / Vehicle Classification, People Counting
– Hardware Features: 2 Way Audio, Alarm In, Alarm Out, Audio In, Audio Out, Built-in Mic, Built-in Speaker, POE, SD Card

SKU: IP-5IR4C22-28-PA

Full Color

Built In Mic

Motion Detection

Active Deterrence

Face Detection

Human Vehicle Classification


Key Features

4 MP UHD Image

  • High performance BSI sensor
  • F1.4 / F1.6 wide aperture lens
  • Resolution up to 2592 x 1520

4 MP Resolution vs 2 MP Resolution

Smart Dual Illumination Night Vision

Supports infrared mode, full-color mode, and smart full-color mode.

Smart Full-color Mode

Infrared Mode vs. Full-color Mode

Intelligent Analytics

AI based on CNN architecture with 1.5Tops, can accurately identify human, motor vehicle and non-motor vehicle, effectively avoiding false alarms.

Perimeter Detection

Line crossing detection

Region intrusion / entrance / exiting detection

Face Detection

Face detection

Face capture

Statistics

Target counting by line / area

Crowd density detection

Heat map

Video Metadata

13 human features

motor vehicle features

non-motor vehicle features

Object Detection

Abandoned object detection

Missing object detection

Smart Full-color Active Deterrence

  • White Light
  • Blue & Red Alarm Light
  • Smart Voice

Two Way Talk Technology

All products feature a built-in microphone & speaker. Supports 1CH audio input and 1CH audio output.

Video Metadata

Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts features.

Advanced Features

Full Color

  • Enhanced Perimeter Protection with vivid images both day and night
  • Vivid Color at night images, providing effective forensic data
  • Advanced protection in low-light environments, deterring trespass, vandalism, and other criminalities

Human and Vehicle Detection

  • Focus on human and vehicle classification.
  • Actively detect in real time loitering and vandalism in various scenarios such as parks, cemeteries, school facilities, and gated communities
  • Accurately detect human or vehicle, effectively reducing false alarms

Built-Mic & Speaker

  • Enhanced 2-way communication, allowing you to listen in on visitors or intruders.
  • Two-way audio, allowing you to warn off intruders, trespassers, and prevent criminalities from occurring.
  • Capture crystal clear important forensic audio

Perimeter Protection

  • Home Entrance and Exit Protection
  • Deter Asset Theft and Vandalism
  • Clear Images Both Day and Night
  • Home or Business Perimeter Protection

24/7 Monitoring

  • Effective Business Asset Protection
  • Efficient Home Security Day and Night
  • Ensure Safety and Security in Workplace
  • Protect restaurants patrons and employees

Application Scenarios

As the challenges have evolved, so to have the solutions. ENS Diamond Series 4K full color SMD Plus security cameras provide broad area surveillance to help combat and solve your challenges! These Include:

Entrance and Exit Monitoring / Home Security

Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our Diamond Series 4K full color security cameras with Smart Motion Detection technology, provide clear visibility and excellent perimeter protection both day and night for effective home security.

Using advanced Video Content Analytics, coupled with 4K, full color and SMD Plus technology, our Diamond Series Security Cameras push our perimeter protection solutions to the next level, deterring theft, vandalism and other criminalities.

SMB Loss Prevention and Asset Protection

24/7 monitoring with advanced VCA functions provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.

Cutting edge 4K full color technology, coupled with Smart Motion Detection Plus provides vivid images and an effective monitoring solution, improving video detail, reducing false alarms, and providing immediate alarm notification for prompt real-time responses.

Commercial Property and Tenant Protection

Utilize advanced SMD Plus and full color technology, providing 24/7 monitoring, day and night, allowing for efficient protection of tenants and property.

Provide basic safety and security with Diamond Series 4K full color security cameras, in order to detect real threats in real-time, preventing vandalism, theft, and other criminalities.

Solution Applications

EFFECTIVE
PERIMETER PROTECTION

LOSS PREVENTION
AND BUSINESS INTELLIGENCE

THEFT AND VANDALISM
PREVENTION

ASSET
PROTECTION

SMD PLUS FOR REAL-TIME MONITORING AND ALERTS

TENANT AND PROPERTY
PROTECTION

H.265+/H265/H.264+/H264/ MJPEG coding
Max. resolution: 2592 × 1520
ICR auto switch, true day / night
30 ~ 40m IR or white light range
3D DNR, true WDR, HLC, BLC, Defog and ROI coding
1CH audio input; 1CH audio output
1CH built-in speaker; 1CH built-in microphone
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
IP66 ingress protection
Support three streams
Intelligent analytics
Blue and red light warning (flashing alternately)
Support user-defined warning voice import

Weight1.88 lbs
Dimensions6 × 6 × 6 in
