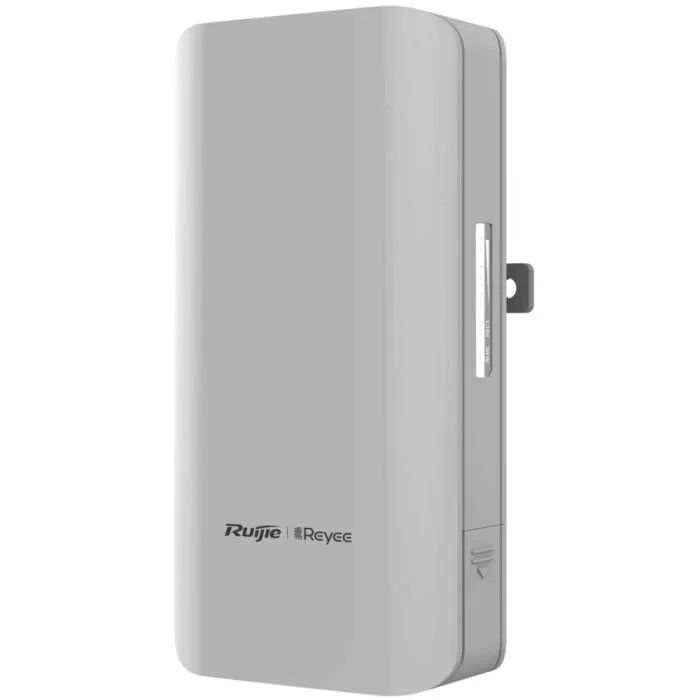

RG-EST310-V2 || Reyee, Networking, Wireless Bridge
Reyee Wireless Bridge (2-pack), 1km range, 5GHz Dual-stream 867Mbps WiFi 5 with 2 x 10dBi beam-ant., 60°H, 30°V, 2 x FE ports, IP54 (1 x Passive PoE), 4KV lightning protection, WebUI/Cloud/App management, 24V Passive PoE @ 7W
Why A Wireless Bridge?
Complex environments that prevent cabling.
Distributed cameras and long distances.
RG-EST310
RG-EST310 Hardware Specifications
LED Signal Indicator
RSSI = Received Signal Strength Indicator
STRONG
RSSI ≥ -65 dBm, 3 LEDs always on
MODERATE
-65 dBm > RSSI ≥ -72 dBm, 2 LEDs always on
WEAK
-72 dBm > RSSI ≥ -78 dBm, 1 LED always on
LOST
-78 dBm ≥ RSSI, connection lost
RG-EST350
15 dBi gain
H: 31°, V: 14°
RG-EST350 Hardware Specification
Long Range Operational Capability
867 Mbps
PTP / PTMP
5KM Operating Distance
High Capacity
45 cameras maximum at 3KM, 20 cameras maximum at 5KM*
Cloud, Make Your Business Easy
Application Scenarios
Rural Areas
Installing in a rural area with poor internet connectivity.
Houses are scattered, the ISP is not offering full coverage by cabling.
Tower Cranes
Blind areas cause a safety hazard and require CCTV
Crane arms are mobile and cannot use fixed cable.
Complex and changing environments in building sites or ports are not suitable for cabling.
Transportation Infrastructure
Long distance and distributed cameras with fiber would incur a huge cost.
Difficult to do cable maintenance because of uninterruptable traffic.
Some locations are not suitable for cabling, such as bridges and raised highways.
Factory Campus
Complex environments requiring distributed cameras not suitable for cabling.
Barcode scanners and CCTV data need to transmit data across campus.
Scenic Areas
Far from a city, not easy to go onsite for maintenance or cabling.
Complicated outdoor environments.
Requires plenty of distributed cameras to guarantee tourist safety.
EFFECTIVE
PERIMETER PROTECTION
LOSS PREVENTION
AND BUSINESS INTELLIGENCE
THEFT AND VANDALISM
PREVENTION
ASSET
PROTECTION
PROVIDING EFFICIENT FORENSIC DATA
TENANT AND PROPERTY
PROTECTION
- RG-EST350 V2 can easily transmit data from 5KM away in real time
- Automatic pairing at long distance, without complex alignment
- IP54 Weatherproof, -30°C~65°C guarantee stable operating at outdoor environment
- Support maximum 45 x 2MP cameras loading at 3KM, 20 x 2MP cameras loading at 5KM
- Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
| Dimensions | 6 × 6 × 6 in |
|---|
