HNC3IV141T-IR-ZAS || Diamond, IPC, 4MP, Bullet, SR MZ
– Housing: Bullet
– Resolution: 4MP
– Lens Category: SR MZ
– Night Vision: Infrared / IR, Starlight
– WDR: True WDR
– Water Resistance Rating : IP67
– NDAA Compliant: No
– VCA Features: Basic VCA, Human / Vehicle Classification
– Hardware Features: Built-in Mic, POE, SD Card
4MP
SMD+
Perimeter Protection
Tripwire Detection
Built-In Mic
Human & Vehicle Classification
Key Features
SMD Plus
Reduce false alarm, focus on human and vehicle
Perimeter Protection
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
WDR
WDR: 120dB Clear details in the environment of strong brightness contrast.
Smart H.265+ & Smart H.264+
Higher encoding efficiency High-quality video, reduces the cost of storage and transmission.
SD Card
All support SD Card Max. 256 GB Micro SD card
IP67 & IK10
Support IP67 & IK10 Protection

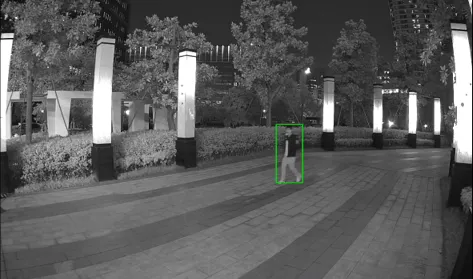

Key Features-SMD Plus
After capturing the target within monitoring range, the camera filters leaves, lights, pets and other disturbing objects, focus on Human and Vehicle
Quick Target Search
- Human & Vehicle
- Saving event retrieval time
False Alarm Filtering
- The camera filters leaves, lights, pets and other disturbing objects
Simple
- Simple configuration, enable in only one single button
Alarm Visualization
- Deliver real-time alarm prompt.
- Monitor video anytime and anywhere.
Inclusive
- Cost-effective solutions, let world share Security by AI
Key Features-SMD Plus
| SMD Plus | |
|---|---|
| Detection accuracy rate (Human & Vehicle) | 98% |
| Human Detection Distance | Up to 6m (2.8mm fixed-focal camera) |
| Vehicle Detection Distance | Up to 9m (2.8mm fixed-focal camera) |
| Small animals false alarm rate (cats, dogs) | < 2% |
| Large animals false alarm rate (cattle, horse, sheep, deer) | <10% |

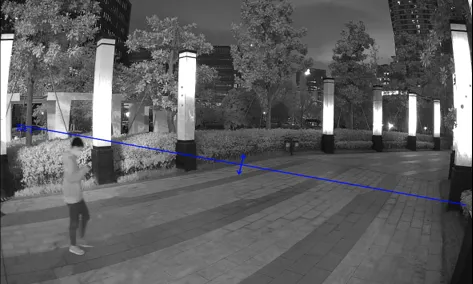

Key Features-Perimeter Protection
With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
SMD Plus vs Perimeter Protection
Differences between Perimeter Protection and SMD Plus:
| Perimeter Protection | SMD Plus | |
|---|---|---|
| Supported channels (for back-end intelligence) | Several channels | Up to Full channels |
| Configuration | Draw tripwire or intrusion rules | Enable via single button |
| Application Scenario | Applicable to specific areas, especially places that needs direction | Whole scene by default |
Key Features-SMD Plus & Perimeter Protection
SMD Plus
Perimeter Protection
Key Features-Quick Target Search
Extract and classify human and vehicles from massive video data, easy for end users to trace historical information and analyze. Human & Vehicle for playback to achieve quick target search, saving event retrieval time.
Key Features-Smart Codec
Adopting advanced algorithm of auto stream control according to the environment, smart codec technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.
With the same scenario, the storage cost of 1080P low bit-rate scheme for one day is estimated at more than 90% lower than that of H.264
General Camera HDD Requirement
Low Bit-rate Camera HDD Requirement
17GB saved per day, 510GB saved per month
HUGE COST SAVINGS
Perimeter Protection:
- Enhanced Perimeter Protection
- Theft Prevention
- Efficient Forensic Data
- Advanced VCA with quick notification
SMD Plus:
- Reduce false alarm notifications with a 98% human and vehicle detection accuracy rate
- Provides real-time alarm prompt and real-time protection
- Effective monitoring with advanced detection technology provides safety and security for all
Tripwire/Intrusion Detection:
- Home Entrance and Exit Protection
- Asset Theft and Vandalism Prevention
- Clear Vivid Images and intruder deterrence
- Home or Business Perimeter Protection
Human and Vehicle Detection:
- Focus on human and vehicle classification
- Actively detect in real time loitering and vandalism in various scenarios such as parks, cemeteries, school facilities, and gated communities
- Accurately detect human or vehicle, effectively reducing false alarm
24/7 Monitoring:
- Effective Business Asset Protection
- Efficient Home Security Day and Night
- Protect restaurant Patrons and Employees
- Ensure Safety and Security in Workplace
APPLICATION SCENARIOS
As the challenges have evolved, so to have the solutions. ENS Diamond Series security cameras provide advanced SMD Plus technology with a variety of features to help combat and solve your challenges! These Include:
Entrance and Exit Monitoring / Home Security
Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our Diamond Series SMD plus security cameras provide clear visibility and excellent perimeter protection both day and night for effective home security.
Using advanced Video Content Analytics, coupled with SMD Plus technology and other enhanced features, our Diamond Series Security Cameras push our perimeter protection solutions to the next level, deterring theft, vandalism and other criminalities.
SMB Loss Prevention and Asset Protection
24/7 monitoring with advanced VCA functions provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.
Enhanced SMD Plus and Perimeter Protection features provide vivid images and an effective monitoring solution, improving video detail, reducing false alarms, and providing immediate alarm notification for prompt real-time responses.
Commercial Property and Tenant Protection
Utilize advanced SMD Plus, reducing false alarms and providing real-time alarms, allowing for efficient protection of tenants and property.
Provide basic safety and security with Diamond Series security cameras, or advanced protection with human and vehicle classification in order to detect real threats in real-time, preventing vandalism, theft, and other criminalities.
SOLUTION APPLICATIONS
EFFECTIVE PERIMETER PROTECTION
LOSS PREVENTION AND BUSINESS INTELLIGENCE
THEFT AND VANDALISM PREVENTION
ASSET PROTECTION
SMD Plus providing real-time monitoring and alerts
TENANT AND PROPERTY PROTECTION
- 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
- Outputs max. 4MP (2688 × 1520) @ 30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in IR LED, max. IR distance: 197 ft (60 m)
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, Tripwire
- Alarm: In, out; Audio: In, out
- Supports max. 256 GB Micro SD card
- 12 V DC/POE power support
- IP67, IK10 (Optional) protection
- SMD
| Weight | 2.09 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
