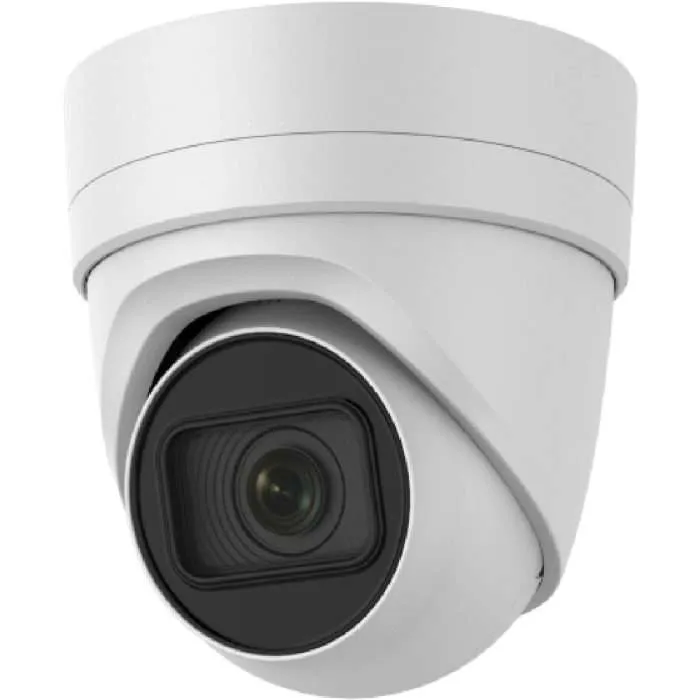

8MP IR Vari-focal Camera Turret Network | ESNC328-XDZ

8MP IR Vari-focal Camera the Image Sensor 1/2.5″ Progressive Scan CMOS, 4K,  IR  Up to 98ft (30 M). Turret Networking / Internet Protocol Security Camera (IPC) 2.8~12mm Auto Vari-focal Lens, H.265+, 120dB WDR the mean is True Wide Dynamic Range (True WDR), 3840×2160@15fps, 3D DNR, VCA, Micro SD Slot, Audio/Alarm, Auto-focus, Face Detection (FD) ,Back Light Compensation(BLC),Highlight Compensation (HLC),Region of Interest (ROI), IP67, IK10, 12V DC.

SKU: ESNC328-XDZ

8MP IR Vari-focal Camera Features

  • 1/2.5″ Progressive Scan CMOS
  • 3840 × 2160 @15 fps
  • 2.8 to 12 mm Auto vari-focal lens
  • Color: 0.01 lux @(F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
  • H.265 , H.265, H.264 , H.264
  • 2 Behavior analyses
  • 120dB WDR
  • BLC/3D DNR/ROI/HLC
  • IP67,IK10
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

Audio

  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz

Alarm

  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
  • Alarm 1 input, 1 output

This 8MP IR Vari-focal Camera works with:

Weight3.32 lbs
Dimensions6 × 6 × 6 in
