HNC3IV389TM-IRASPV/28 || Diamond, IPC, 4K / 8MP, Turret, 2.8mm Fixed

– Housing: Turret
– Resolution: 4K / 8MP
– Lens Category: 2.8mm Fixed
– Night Vision: Full Time Color, Infrared / IR, LED, Starlight
– WDR: True WDR
– Water Resistance Rating : IP67
– NDAA Compliant: No
– VCA Features: Basic VCA, Human / Vehicle Classification
– Hardware Features: Built-in Mic, POE, SD Card

SKU: HNC3IV389TM-IRASPV/28

4K

Full Color

Human Vehicle Classification

Smart Dual Illumination

Built In Mic


Key Features

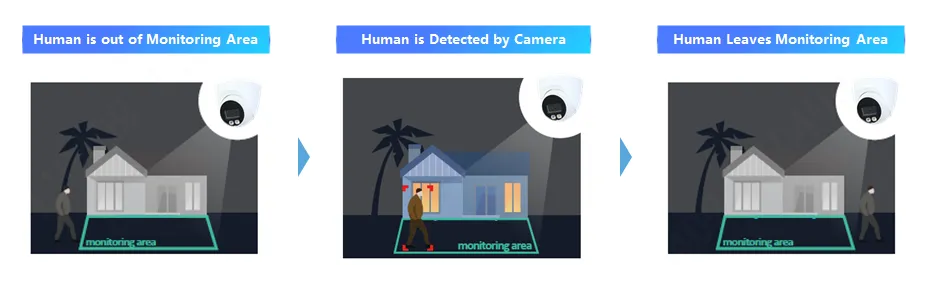

Smart Dual Illumination

Mobile Application Control Capability

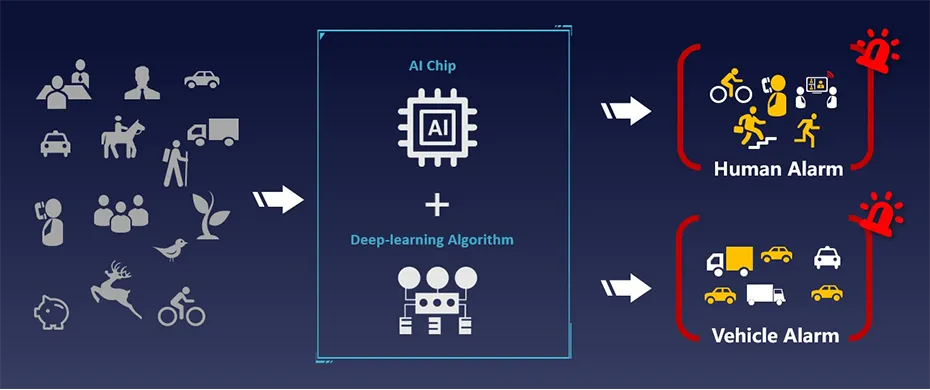

Smart Motion Detection Plus (SMD Plus)

Smart Motion Detection Plus, referred to as SMD Plus; filters Motion Detection alarms triggered by unessential targets. This allows for effectively recognizing human and vehicles, sending alarm notifications, and reducing false alarms.

Effective Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.

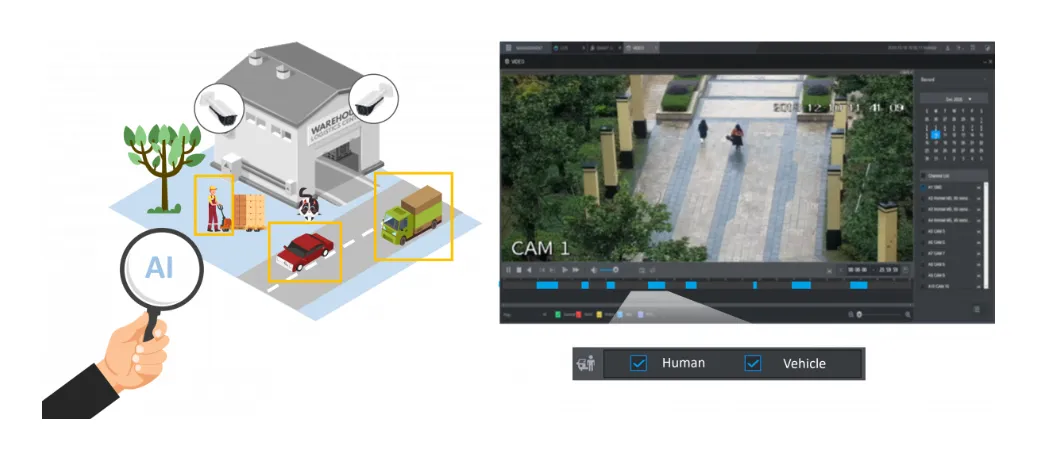

Quick Search Capability

Extract and classify human and vehicles from massive video data, easy for end users to trace historical information and analyze. Human & Vehicle for playback to achieve quick target search, saving event retrieval time.

Smart Codec

Adopting advanced algorithm of auto stream control according to the environment, smart codec technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Scheduled Illumination

Allows custom light and alarm scheduling. Setting no light or alarm during business hours, yet still providing constant monitoring, and automatically enabling said features during closing hours to promote security.

Advanced Features

4K Resolution

  • Sharp 4K Video Imaging Technology
  • Record at advanced level of detail for superior forensic data
  • Enhanced situational awareness with clear video, staying alert of all potential dangers

SMD Plus

  • Reduce false alarm notifications with a 98% human and vehicle detection accuracy rate.
  • Provides real-time alarm prompts and real-time protection.
  • Effective monitoring with advanced detection technology provides safety and security for all.

Built In Microphone

  • Enhanced 2-way communication, allowing you to listen in on visitors or intruders
  • Capture crystal clear important forensic audio

Human and Vehicle Detection

  • Focus on human and vehicle classification.
  • Actively detect in real time loitering and vandalism in various scenarios such as parks, cemeteries, school facilities, and gated communities
  • Accurately detect human or vehicle, effectively reducing false alarms

Full Color

  • Enhanced Perimeter Protection with vivid images both day and night
  • Vivid Color at night images, providing effective forensic data
  • Advanced protection in low-light environments, deterring trespass, vandalism, and other criminalities

Application Scenarios

As the challenges have evolved, so to have the solutions. ENS Diamond Series 4K full color SMD Plus security cameras provide broad area surveillance to help combat and solve your challenges! These Include:

Entrance and Exit Monitoring / Home Security

Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our Diamond Series 4K full color security cameras with Smart Motion Detection technology, provide clear visibility and excellent perimeter protection both day and night for effective home security.

Using advanced Video Content Analytics, coupled with 4K, full color and SMD Plus technology, our Diamond Series Security Cameras push our perimeter protection solutions to the next level, deterring theft, vandalism and other criminalities.

SMB Loss Prevention and Asset Protection

24/7 monitoring with advanced VCA functions provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.

Cutting edge 4K full color technology, coupled with Smart Motion Detection Plus provides vivid images and an effective monitoring solution, improving video detail, reducing false alarms, and providing immediate alarm notification for prompt real-time responses.

Commercial Property and Tenant Protection

Utilize advanced SMD Plus and full color technology, providing 24/7 monitoring, day and night, allowing for efficient protection of tenants and property.

Provide basic safety and security with Diamond Series 4K full color security cameras, in order to detect real threats in real-time, preventing vandalism, theft, and other criminalities.

Solution Applications

EFFECTIVE
PERIMETER PROTECTION

LOSS PREVENTION
AND BUSINESS INTELLIGENCE

THEFT AND VANDALISM
PREVENTION

ASSET
PROTECTION

SMD PLUS FOR REAL-TIME MONITORING AND ALERTS

TENANT AND PROPERTY
PROTECTION

· 8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition
image.
· Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520
(2688 × 1520) @25/30 fps.
· H.265 codec, high compression rate, ultra-low bit rate.
· Built-in warm light and IR LED, the max. illumination distance is 30 m
and the max. warm light distance is 30 m.
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments.
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
to various monitoring scenes.
· Intelligent monitoring: Intrusion, tripwire (the two functions support the
classification and accurate detection of vehicle and human).
· Abnormality detection: Motion detection, video tampering, audio
detection, no SD card, SD card full, SD card error, network
disconnection, IP conflict, illegal access, and voltage detection.
· Supports max. 256 G Micro SD card; built in MIC.
· 12 VDC/PoE power supply, easy for installation.
· IP67 protection.
· SMD Plus.

Weight1.4 lbs
Dimensions6 × 6 × 6 in
